200-301 Question 67

Single page →
Topic 1 · Question 67 · Select all that apply

Which two functions are performed by the core layer in a three-tier architecture? (Choose two.)

  • AProvide uninterrupted forwarding service (correct answer)
  • BInspect packets for malicious activity
  • CEnsure timely data transfer between layers (correct answer)
  • DProvide direct connectivity for end user devices
  • EPolice traffic that is sent to the edge of the network
Reveal answer & explanation
Correct answer: A, C

The correct answer is A, C. Option A: Provide uninterrupted forwarding service Option C: Ensure timely data transfer between layers

200-301 Question 68

Single page →
Topic 1 · Question 68

What is a recommended approach to avoid co-channel congestion while installing access points that use the 2.4 GHz frequency?

  • Adifferent nonoverlapping channels (correct answer)
  • Bone overlapping channel
  • Cone nonoverlapping channel
  • Ddifferent overlapping channels
Reveal answer & explanation
Correct answer: A

The correct answer is A. Option A: different nonoverlapping channels

200-301 Question 69

Single page →
Topic 1 · Question 69

A manager asks a network engineer to advise which cloud service models are used so employees do not have to waste their time installing, managing, and updating software that is only used occasionally. Which cloud service model does the engineer recommend?

  • Ainfrastructure-as-a-service
  • Bplatform-as-a-service
  • Cbusiness process as service to support different types of service
  • Dsoftware-as-a-service (correct answer)
Reveal answer & explanation
Correct answer: D

The correct answer is D. Option D: software-as-a-service

200-301 Question 70

Single page →
Topic 1 · Question 70 · Select all that apply

What are two functions of a Layer 2 switch? (Choose two.)

  • Aacts as a central point for association and authentication servers
  • Bselects the best route between networks on a WAN
  • Cmoves packets within a VLAN (correct answer)
  • Dmoves packets between different VLANs
  • Emakes forwarding decisions based on the MAC address of a packet (correct answer)
Reveal answer & explanation
Correct answer: C, E

The correct answer is C, E. Option C: moves packets within a VLAN Option E: makes forwarding decisions based on the MAC address of a packet

Explanation

A VLAN creates a separate Layer 2 broadcast domain on switched infrastructure. OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.

200-301 Question 72

Single page →
Topic 1 · Question 72

An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels. What must be configured to allow clients to preferentially use 5GHz access points?

  • AClient Band Select (correct answer)
  • BRe-Anchor Roamed Clients
  • COEAP Spilt Tunnel
  • D11ac MU-MIMO
Reveal answer & explanation
Correct answer: A

The correct answer is A. Option A: Client Band Select

200-301 Question 73

Single page →
Topic 1 · Question 73

Which networking function occurs on the data plane?

  • Aprocessing inbound SSH management traffic
  • Bsending and receiving OSPF Hello packets
  • Cfacilitates spanning-tree elections
  • Dforwarding remote client/server traffic (correct answer)
Reveal answer & explanation
Correct answer: D

The correct answer is D. Option D: forwarding remote client/server traffic

200-301 Question 74

Single page →
Topic 1 · Question 74

Under which condition is TCP preferred over UDP?

  • AUDP is used when low latency is optimal, and TCP is used when latency is tolerable.
  • BTCP is used when dropped data is more acceptable, and UDP is used when data is accepted out-of-order.
  • CTCP is used when data reliability is critical, and UDP is used when missing packets are acceptable. (correct answer)
  • DUDP is used when data is highly interactive, and TCP is used when data is time-sensitive.
Reveal answer & explanation
Correct answer: C

The correct answer is C. Option C: TCP is used when data reliability is critical, and UDP is used when missing packets are acceptable.

200-301 Question 75

Single page →
Topic 1 · Question 75

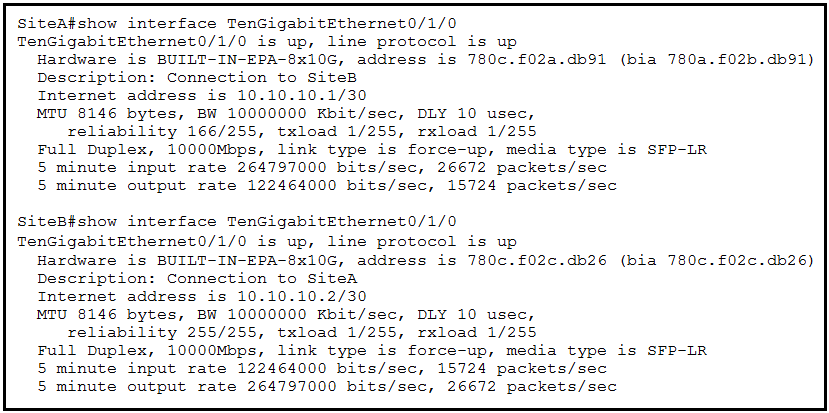

Refer to the exhibit. Shortly after SiteA was connected to SiteB over a new single-mode fiber path, users at SiteA report intermittent connectivity issues with applications hosted at SiteB. What is the cause of the intermittent connectivity issue?

Exhibit 1 for question 75
  • AInterface errors are incrementing.
  • BHigh usage is causing high latency.
  • CAn incorrect SFP media type was used at SiteA.
  • DThe sites were connected with the wrong cable type. (correct answer)
Reveal answer & explanation
Correct answer: D

The correct answer is D. Option D: The sites were connected with the wrong cable type.

200-301 Question 76

Single page →
Topic 1 · Question 76

A network engineer must configure the router R1 GigabitEthernet1/1 interface to connect to the router R2 GigabitEthernet1/1 interface. For the configuration to be applied, the engineer must compress the address 2001:0db8:0000:0000:0500:000a:400F:583B. Which command must be issued on the interface?

  • Aipv6 address 2001::db8:0000::500:a:400F:583B
  • Bipv6 address 2001:db8:0::500:a:4F:583B
  • Cipv6 address 2001:db8::500:a:400F:583B (correct answer)
  • Dipv6 address 2001:0db8::5:a:4F:583B
Reveal answer & explanation
Correct answer: C

The correct answer is C. Option C: ipv6 address 2001:db8::500:a:400F:583B

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. IPv6 uses 128-bit addresses and relies on Neighbor Discovery rather than ARP.

200-301 Question 77

Single page →
Topic 1 · Question 77

What is a network appliance that checks the state of a packet to determine whether the packet is legitimate?

  • ALayer 2 switch
  • BLAN controller
  • Cload balancer
  • Dfirewall (correct answer)
Reveal answer & explanation
Correct answer: D

The correct answer is D. Option D: firewall

200-301 Question 78

Single page →
Topic 1 · Question 78

What is a role of access points in an enterprise network?

  • Aintegrate with SNMP in preventing DDoS attacks
  • Bserve as a first line of defense in an enterprise network
  • Cconnect wireless devices to a wired network (correct answer)
  • Dsupport secure user logins to devices on the network
Reveal answer & explanation
Correct answer: C

The correct answer is C. Option C: connect wireless devices to a wired network

200-301 Question 79

Single page →
Topic 1 · Question 79

An implementer is preparing hardware for virtualization to create virtual machines on a host. What is needed to provide communication between hardware and virtual machines?

  • Arouter
  • Bhypervisor (correct answer)
  • Cswitch
  • Dstraight cable
Reveal answer & explanation
Correct answer: B

The correct answer is B. Option B: hypervisor

200-301 Question 80

Single page →
Topic 1 · Question 80

How does a Cisco Unified Wireless Network respond to Wi-Fi channel overlap?

  • AIt allows the administrator to assign the channels on a per-device or per-interface basis.
  • BIt segregates devices from different manufactures onto different channels.
  • CIt analyzes client load and background noise and dynamically assigns a channel. (correct answer)
  • DIt alternates automatically between 2.4 GHz and 5 GHz on adjacent access points.
Reveal answer & explanation
Correct answer: C

The correct answer is C. Option C: It analyzes client load and background noise and dynamically assigns a channel.

200-301 Question 81

Single page →
Topic 1 · Question 81

In which situation is private IPv4 addressing appropriate for a new subnet on the network of an organization?

  • AThe network has multiple endpoint listeners, and it is desired to limit the number of broadcasts.
  • BThe ISP requires the new subnet to be advertised to the Internet for web services.
  • CThere is limited unique address space, and traffic on the new subnet will stay local within the organization. (correct answer)
  • DTraffic on the subnet must traverse a site-to-site VPN to an outside organization.
Reveal answer & explanation
Correct answer: C

The correct answer is C. Option C: There is limited unique address space, and traffic on the new subnet will stay local within the organization.

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. This option keeps traffic private / properly secured as required.

200-301 Question 83

Single page →
Topic 1 · Question 83

Which 802.11 frame type is indicated by a probe response after a client sends a probe request?

  • Adata
  • Bmanagement (correct answer)
  • Ccontrol
  • Daction
Reveal answer & explanation
Correct answer: B

The correct answer is B. Option B: management

200-301 Question 84

Single page →
Topic 1 · Question 84

What is the difference in data transmission delivery and reliability between TCP and UDP?

  • ATCP transmits data at a higher rate and ensures packet delivery. UDP retransmits lost data to ensure applications receive the data on the remote end.
  • BTCP requires the connection to be established before transmitting data. UDP transmits data at a higher rate without ensuring packet delivery. (correct answer)
  • CUDP sets up a connection between both devices before transmitting data. TCP uses the three-way handshake to transmit data with a reliable connection.
  • DUDP is used for multicast and broadcast communication. TCP is used for unicast communication and transmits data at a higher rate with error checking.
Reveal answer & explanation
Correct answer: B

The correct answer is B. Option B: TCP requires the connection to be established before transmitting data. UDP transmits data at a higher rate without ensuring packet delivery.

200-301 Question 85

Single page →
Topic 1 · Question 85

Refer to the exhibit. When PC-A sends traffic to PC-B, which network component is in charge of receiving the packet from PC-A, verifying the IP addresses, and forwarding the packet to PC-B?

Exhibit 1 for question 85
  • Arouter (correct answer)
  • BLayer 2 switch
  • Cload balancer
  • Dfirewall
Reveal answer & explanation
Correct answer: A

The correct answer is A. Option A: router

200-301 Question 86

Single page →
Topic 1 · Question 86

What is the maximum bandwidth of a T1 point-to-point connection?

  • A1.544 Mbps (correct answer)
  • B2.048 Mbps
  • C34.368 Mbps
  • D43.7 Mbps
Reveal answer & explanation
Correct answer: A

The correct answer is A. Option A: 1.544 Mbps

200-301 Question 87

Single page →
Topic 1 · Question 87 · Select all that apply

What are two similarities between UTP Cat 5e and Cat 6a cabling? (Choose two.)

  • ABoth support speeds up to 10 Gigabit.
  • BBoth support speeds of at least 1 Gigabit. (correct answer)
  • CBoth support runs of up to 55 meters.
  • DBoth support runs of up to 100 meters. (correct answer)
  • EBoth operate at a frequency of 500 MHz.
Reveal answer & explanation
Correct answer: B, D

The correct answer is B, D. Option B: Both support speeds of at least 1 Gigabit. Option D: Both support runs of up to 100 meters.

200-301 Question 88

Single page →
Topic 1 · Question 88

What is a characteristic of cloud-based network topology?

  • Aonsite network services are provided with physical Layer 2 and Layer 3 components
  • Bwireless connections provide the sole access method to services
  • Cphysical workstations are configured to share resources
  • Dservices are provided by a public, private, or hybrid deployment (correct answer)
Reveal answer & explanation
Correct answer: D

The correct answer is D. Option D: services are provided by a public, private, or hybrid deployment
