200-301 Question 883

Single page →

Topic 1 · Question 883

Refer to the exhibit. How does SW2 interact with other switches in this VTP domain?

AIt transmits and processes VTP updates from any VTP clients on the network on its trunk ports.
BIt processes VTP updates from any VTP clients on the network on its access ports.
CIt receives updates from all VTP servers and forwards all locally configured VLANs out all trunk ports.
DIt forwards only the VTP advertisements that it receives on its trunk ports. (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: It forwards only the VTP advertisements that it receives on its trunk ports.

Explanation

A trunk carries traffic for multiple VLANs between network devices.

A network engineer is upgrading a small data center to host several new applications, including server backups that are expected to account for up to 90% of the bandwidth during peak times. The data center connects to the MPLS network provider via a primary circuit and a secondary circuit. How does the engineer inexpensively update the data center to avoid saturation of the primary circuit by traffic associated with the backups?

AAssign traffic from the backup servers to a dedicated switch.
BPlace the backup servers in a dedicated VLAN.
CAdvertise a more specific route for the backup traffic via the secondary circuit. (correct answer)
DConfigure a dedicated circuit for the backup traffic.

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: Advertise a more specific route for the backup traffic via the secondary circuit.

200-301 Question 885

Single page →

Topic 1 · Question 885

Refer to the exhibit. A network engineer started to configure two directly-connected routers as shown. Which command sequence must the engineer configure on R2 so that the two routers become OSPF neighbors?

Ainterface GigabitEthernet0/1ip ospf 1 area 1 (correct answer)
Brouter ospf 1network 192.168.12.1 0.0.0.0 area 1
Cinterface GigabitEthernet0/1ip ospf 1 area 0
Drouter ospf 1network 192.168.12.0 0.0.0.127 area 0

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: interface GigabitEthernet0/1ip ospf 1 area 1

Explanation

OSPF is a link-state IGP that uses cost and a shortest-path calculation to select routes.

200-301 Question 886

Single page →

Topic 1 · Question 886

Refer to the exhibit. What does route 10.0.1.3/32 represent in the routing table?

Aall hosts in the 10.0.1.0 subnet
Ba single destination address (correct answer)
Cthe source 10.0.1.100
Dthe 10.0.0.0 network

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: a single destination address

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. NAT translates addresses between network domains, commonly conserving public IPv4 addresses.

200-301 Question 887

Single page →

Topic 1 · Question 887

Refer to the exhibit. Router R14 is in the process of being configured. Which configuration must be used to establish a host route to a PC 10?

Aip route 10.80.65.10 255.255.255.254 10.80.65.1
Bip route 10.80.65.10 255.255.255.255 10.73.65.66 (correct answer)
Cip route 10.73.65.66 0.0.0.255 10.80.65.10
Dip route 10.73.65.66 255.0.0.0 10.80.65.10

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: ip route 10.80.65.10 255.255.255.255 10.73.65.66

200-301 Question 888

Single page →

Topic 1 · Question 888

Refer to the exhibit. Which next-hop IP address has the least desirable metric when sourced from R1?

A10.10.10.4
B10.10.10.5
C10.10.10.3 (correct answer)
D10.10.10.2

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: 10.10.10.3

200-301 Question 889

Single page →

Topic 1 · Question 889 · Select all that apply

Refer to the exhibit. The New York router must be configured so that traffic to 2000::1 is sent primarily via the Atlanta site, with a secondary path via Washington that has an administrative distance of 2. Which two commands must be configured on the New York router? (Choose two.)

Aipv6 route 2000::1/128 2012::1 (correct answer)
Bipv6 route 2000::1/128 2012::1 5
Cipv6 route 2000::1/128 2012::2
Dipv6 route 2000::1/128 2023::2 5
Eipv6 route 2000::1/128 2023::3 2 (correct answer)

Reveal answer & explanation

Correct answer: A, E

The correct answer is A, E. Option A: ipv6 route 2000::1/128 2012::1 Option E: ipv6 route 2000::1/128 2023::3 2

Explanation

IPv6 uses 128-bit addresses and relies on Neighbor Discovery rather than ARP.

200-301 Question 890

Single page →

Topic 1 · Question 890

Refer to the exhibit. The primary route across Gi0/0 is configured on both routers. A secondary route must be configured to establish connectivity between the workstation networks. Which command set must be configured to complete this task?

AR1 -ip route 172.16.2.0 255.255.255.248 172.16.0.5 110R2 -ip route 172.16.1.0 255.255.255.0 172.16.0.6 110
BR1 -ip route 172.16.2.0 255.255.255.240 172.16.0.2 113R2 -ip route 172.16.1.0 255.255.255.0 172.16.0.1 114
CR1 -ip route 172.16.2.0 255.255.255.224 172.16.0.6 111R2 -ip route 172.16.1.0 255.255.255.0 172.16.0.5 112 (correct answer)
DR1 -ip route 172.16.2.0 255.255.255.240 172.16.0.5 89R2 -ip route 172.16.1.0 255.255.255.0 172.16.0.6 89

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: R1 -ip route 172.16.2.0 255.255.255.224 172.16.0.6 111R2 -ip route 172.16.1.0 255.255.255.0 172.16.0.5 112

200-301 Question 892

Single page →

Topic 1 · Question 892 · Select all that apply

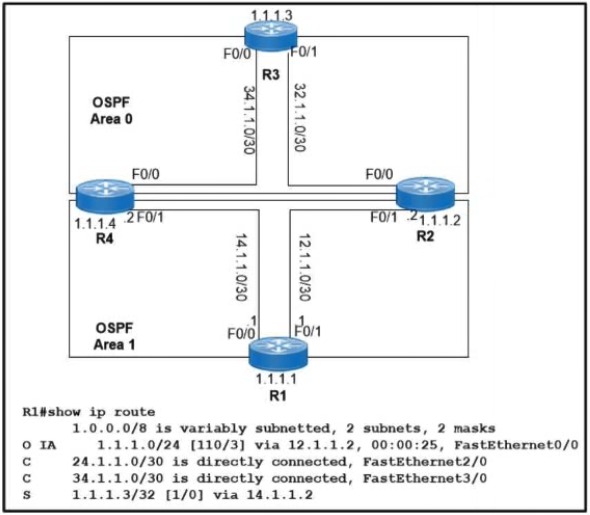

Refer to the exhibit. Which two values does router R1 use to determine the best path to reach destinations in network 1.0.0.0/8? (Choose two.)

Alowest cost to reach the next hop
Bhighest administrative distance
Clowest metric (correct answer)
Dhighest metric
Elongest prefix match (correct answer)

Reveal answer & explanation

Correct answer: C, E

The correct answer is C, E. Option C: lowest metric Option E: longest prefix match

Explanation

Routers choose the matching route with the longest prefix before comparing administrative distance or metric.

200-301 Question 893

Single page →

Topic 1 · Question 893

Refer to the exhibit. A public IPv6 address must be configured for internet access. Which command must be configured on the R2 WAN interface to the service provider?

Aipv6 address fe80::/10
Bipv6 address 2001:db8:433:37:7710:ffff:ffff:ffff/64 anycast
Cipv6 address 2001:db8:123:45::4/64 (correct answer)
Dipv6 address fe80::260:3EFF:FE11:6770 link-local

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: ipv6 address 2001:db8:123:45::4/64

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. IPv6 uses 128-bit addresses and relies on Neighbor Discovery rather than ARP.

200-301 Question 895

Single page →

Topic 1 · Question 895

Refer to the exhibit. A network engineer must configure router R1 with a host route to the server. Which command must the engineer configure?

AR1(config)#ip route 10.10.10.10 255.255.255.255 192.168.0.2 (correct answer)
BR1(config)#ip route 10.10.10.0 255.255.255.0 192.168.0.2
CR1(config)#ip route 0.0.0.0 0.0.0.0 192.168.0.2
DR1(config)#ip route 192.168.0.2 255.255.255.255 10.10.10.10

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: R1(config)#ip route 10.10.10.10 255.255.255.255 192.168.0.2

200-301 Question 896

Single page →

Topic 1 · Question 896

Refer to the exhibit. IPv6 is being implemented within the enterprise. The command ipv6 unicast-routing is configured. Interface Gig0/0 on R1 must be configured to provide a dynamic assignment using the assigned IPv6 block. Which command accomplishes this task?

Aipv6 address 2001:DB8:FFFF:FCF3::64 link-local
Bipv6 address 2001:DB8:FFFF:FCF3::1/64
Cipv6 address 2001:DB8:FFFF:FCF3::64 eui-64 (correct answer)
Dipv6 address autoconfig 2001:DB8:FFFF:FCF2::/64

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: ipv6 address 2001:DB8:FFFF:FCF3::64 eui-64

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. IPv6 uses 128-bit addresses and relies on Neighbor Discovery rather than ARP.

200-301 Question 897

Single page →

Topic 1 · Question 897

Refer to the exhibit. With which metric does router R1 learn the route to host 172.16.0.202?

A90
B110
C32445 (correct answer)
D3184439

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: 32445

200-301 Question 898

Single page →

Topic 1 · Question 898

Refer to the exhibit. A network engineer must configure the link with these requirements: • Consume as few IP addresses as possible. • Leave at least two additional useable IP addresses for future growth. Which set of configurations must be applied?

AR1(config-if)#ip address 10.10.10.1 255.255.255.252R2(config-if)#ip address 10.10.10.2 255.255.255.252
BR1(config-if)#ip address 10.10.10.1 255.255.255.240R2(config-if)#ip address 10.10.10.12 255.255.255.240
CR1(config-if)#ip address 10.10.10.1 255.255.255.248R2(config-if)#ip address 10.10.10.4 255.255.255.248 (correct answer)
DR1(config-if)#ip address 10.10.10.1 255.255.255.0R2(config-if)#ip address 10.10.10.5 255.255.255.0

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: R1(config-if)#ip address 10.10.10.1 255.255.255.248R2(config-if)#ip address 10.10.10.4 255.255.255.248

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.

200-301 Question 900

Single page →

Topic 1 · Question 900

Refer to the exhibit. A static route must be configured on R86 to forward traffic for the 172.16.34.0/29 network, which resides on R14. Which command must be used to fulfill the request?

Aip route 10.73.65.65 255.255.255.248 172.16.34.0
Bip route 172.16.34.0 255.255.255.248 10.73.65.65 (correct answer)
Cip route 172.16.34.0 0.0.0.7 10.73.65.64
Dip route 172.16.34.0 255.255.224.0 10.73.65.66

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: ip route 172.16.34.0 255.255.255.248 10.73.65.65

200-301 Question 901

Single page →

Topic 1 · Question 901

Refer to the exhibit. An engineer must configure a floating static route on an external EIGRP network. The destination subnet is the /29 on the LAN interface of R86. Which command must be executed on R14?

Aip route 10.80.65.0 255.255.248.0 10.73.65.66 1
Bip route 10.80.65.0 255.255.255.240 fa0/1 89
Cip route 10.80.65.0 255.255.255.248 10.73.65.66 171 (correct answer)
Dip route 10.73.65.66 0.0.0.224 10.80.65.0 255

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: ip route 10.80.65.0 255.255.255.248 10.73.65.66 171

200-301 Question 902

Single page →

Topic 1 · Question 902

Refer to the exhibit. What is the next-hop IP address for R2 so that PC2 reaches the application server via EIGRP?

A192.168.30.1
B10.10.10.6 (correct answer)
C10.10.10.5
D192.168.20.1

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: 10.10.10.6

200-301 Question 904

Single page →

Topic 1 · Question 904

Refer to the exhibit. An IPv6 address must be obtained automatically on the LAN interface on R1. Which command must be implemented to accomplish the task?

Aipv6 address autocontig (correct answer)
Bipv6 address dhcp
Cipv6 address fe80::/10
Dipv6 address 2001:db8:d8d2:1008:4332:45:0570::/64

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: ipv6 address autocontig

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. IPv6 uses 128-bit addresses and relies on Neighbor Discovery rather than ARP.

200-301 Question 905

Single page →

Topic 1 · Question 905

Refer to the exhibit. A network engineer is updating the configuration on router R1 to connect a new branch office to the company network. R2 has been configured correctly. Which command must the engineer configure so that devices at the new site communicate with the main office?

Aip route 172.25.25.1 255.255.255.255 g0/2
Bip route 172.25.25.0 255.255.255.0 192.168.2.2 (correct answer)
Cip route 172.25.25.0 255.255.255.0 192.168.2.1
Dip route 172.25.25.1 255.255.255.255 g0/1

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: ip route 172.25.25.0 255.255.255.0 192.168.2.2

200-301 Question 906

Single page →

Topic 1 · Question 906

A network engineer must migrate a router loopback interface to the IPv6 address space. If the current IPv4 address of the interface is 10.54.73.1/32, and the engineer configures IPv6 address 0:0:0:0:0:ffff:a36:4901, which prefix length must be used?

A/64
B/96
C/124
D/128 (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: /128
