Topic 1 · Question 1262
Which interface is used to send traffic to the destination network?
- AG0/6 (correct answer)
- BG0/3
- CG0/16
- DG0/23
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: G0/6
200-301 — questions
Page 56 of 60 · 1182 total questions.
Topic 1 · Question 1264
Which is a fact related to FTP?
- AIt uses two separate connections for control and data traffic. (correct answer)
- BIt uses block numbers to identify and mitigate data-transfer errors.
- CIt always operates without user authentication.
- DIt relies on the well-known UDP port 69.
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: It uses two separate connections for control and data traffic.
Topic 1 · Question 1265
Refer to the exhibit. What is the cause of the issue?
- Ashutdown command
- Bwrong cable type (correct answer)
- CSTP
- Dport security
Reveal answer & explanationHide answer
Correct answer: B
The correct answer is B. Option B: wrong cable type
Topic 1 · Question 1266
PC1 tries to send traffic to newly installed PC2. The PC2 MAC address is not listed in the MAC address table of the switch, so the switch sends the packet to all ports in the same VLAN. Which switching concept does this describe?
- Aframe flooding (correct answer)
- BMAC address table
- Cspanning-tree protocol
- DMAC address aging
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: frame flooding
Topic 1 · Question 1267
Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
- A2001:db8:3bb8:3bb1:C810:B3FF:FF8B:1
- B2001:db8:3bb8:3bb1:C001:3BFE:FF81:1
- C2001:db8:3bb8:3bb4:6363:93FF:EF66:1
- D2001:db8:3bb8:3bb1:C801:B3FF:FEB8:1 (correct answer)
Reveal answer & explanationHide answer
Correct answer: D
The correct answer is D. Option D: 2001:db8:3bb8:3bb1:C801:B3FF:FEB8:1
Topic 1 · Question 1269
What is a characteristic of a Layer 2 switch?
- Atransfers all frames received to every connected device
- Boffers one collision domain for all connected devices
- Ctransmits exclusively at half duplex
- Dsupports segmentation using tagging protocols (correct answer)
Reveal answer & explanationHide answer
Correct answer: D
The correct answer is D. Option D: supports segmentation using tagging protocols
Topic 1 · Question 1272
Which cable type must be used when connecting two like devices together using these criteria? • Pins 1 to 3 and 2 to 6 are required. • Auto detection MDI-X is unavailable.
- Astraight-through
- Bconsole
- Ccrossover (correct answer)
- Drollover
Reveal answer & explanationHide answer
Correct answer: C
The correct answer is C. Option C: crossover
Topic 1 · Question 1273
What is a characteristic of an SSID in wireless networks?
- Aallows easy file sharing between endpoints
- Bprovides protection against spyware
- Cassociates a name to a wireless network (correct answer)
- Deliminates network piggybacking
Reveal answer & explanationHide answer
Correct answer: C
The correct answer is C. Option C: associates a name to a wireless network
Topic 1 · Question 1274
Which selections must be used on the WLC when implementing a RADIUS server for wireless authentication?
- AClient Exclusion and SSH
- BNetwork Access Control State and SSH
- CAAA Override and the IP address of the server (correct answer)
- D802.1x and the MAC address of the server
Reveal answer & explanationHide answer
Correct answer: C
The correct answer is C. Option C: AAA Override and the IP address of the server
Explanation
OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. AAA centralizes authentication, authorization, and accounting for administrative or network access.
Topic 1 · Question 1276
Which port-security violation mode drops traffic from unknown MAC addresses and forwards an SNMP trap?
- Ashutdown VLAN
- Bprotect
- Crestrict (correct answer)
- Dshutdown
Reveal answer & explanationHide answer
Correct answer: C
The correct answer is C. Option C: restrict
Explanation
REST APIs commonly manipulate resources over HTTP using methods such as GET, POST, PUT, PATCH, and DELETE. This option keeps traffic private / properly secured as required.
Topic 1 · Question 1277
What is the purpose of an ESSID?
- AIt allows multiple access points to provide a common network for client connections. (correct answer)
- BIt supports fast roaming features such as 802.11 r, 802.11k, and 802.11v.
- CIt serves as the wireless MAC address of the access point.
- DIt provides greater security than a standard SSID.
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: It allows multiple access points to provide a common network for client connections.
Topic 1 · Question 1279
How does a hub handle a frame traveling to a known destination MAC address differently than a switch?
- AThe hub forwards the frame to all ports, and a switch forwards the frame to the known destination. (correct answer)
- BThe hub forwards the frame to all ports in the FIB table, and a switch forwards the frame the destination MAC is known.
- CThe hub forwards the frame using the information in the MAC table, and a switch uses data in its routing table.
- DThe hub forwards the frame only to the port connected to the known MAC address, and a switch forwards the frame to all ports.
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: The hub forwards the frame to all ports, and a switch forwards the frame to the known destination.
Explanation
NAT translates addresses between network domains, commonly conserving public IPv4 addresses.
Topic 1 · Question 1280
Refer to the exhibit. Which switch becomes the root bridge?
- ASW 1 -Bridge Priority - 20480 -mac-address 00:10:a1:71 :e3:35
- BSW 2 -Bridge Priority - 20480 -mac-address 00:10:a1:54:4e:50 (correct answer)
- CSW 3 -Bridge Priority - 57344 -mac-address 00:10:a1:93:09:2d
- DSW 4 -Bridge Priority - 57344 -mac-address 00:10:a1:57:61:80
Reveal answer & explanationHide answer
Correct answer: B
The correct answer is B. Option B: SW 2 -Bridge Priority - 20480 -mac-address 00:10:a1:54:4e:50
Explanation
OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.
Topic 1 · Question 1282
Which interface condition is occurring in this output?
- Abad NIC
- Bbroadcast storm
- Cduplex mismatch
- Dhigh throughput (correct answer)
Reveal answer & explanationHide answer
Correct answer: D
The correct answer is D. Option D: high throughput
Topic 1 · Question 1283
Which interface is used to send traffic to the destination network?
- AF0/7 (correct answer)
- BF0/6
- CF0/4
- DF0/5
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: F0/7
Topic 1 · Question 1286
What causes a port to be placed in the err-disabled state?
- Ashutdown command issued on the port
- Bport security violation (correct answer)
- Cnothing plugged into the port
- Dlatency
Reveal answer & explanationHide answer
Correct answer: B
The correct answer is B. Option B: port security violation
Explanation
Switch port security restricts which and how many source MAC addresses may use an access port.
Topic 1 · Question 1287
Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
- A2001:db8:d945:91:12A0:AB34:FFCC:1
- B2001:db8:d945:91:11B0:ABFF:FECC:1 (correct answer)
- C2001:db8:d945:91:4661:59FF:FF53:5
- D2001:db8:d945:91:1130:ABFF:FECC:1
Reveal answer & explanationHide answer
Correct answer: B
The correct answer is B. Option B: 2001:db8:d945:91:11B0:ABFF:FECC:1
Topic 1 · Question 1288

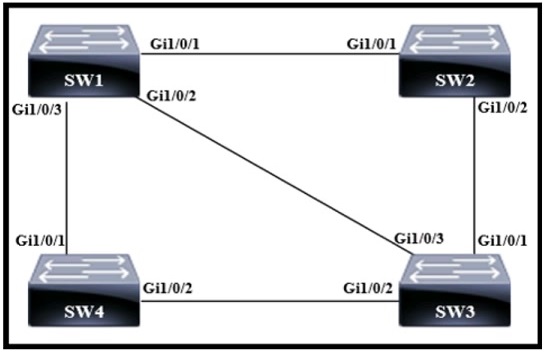

Refer to the exhibit. Which switch becomes the root bridge?
- ASW 1 -Bridge Priority - 8192 -mac-address 00:10:a1:30:eb:38
- BSW 2 -Bridge Priority - 8192 -mac-address 00:10:a1:80:fb:29 (correct answer)
- CSW 3 -Bridge Priority - 24576 -mac-address 00:10:a1:50:55:8f
- DSW 4 -Bridge Priority - 24576 -mac-address 00:10:a1:90:7e:66
Reveal answer & explanationHide answer
Correct answer: B
The correct answer is B. Option B: SW 2 -Bridge Priority - 8192 -mac-address 00:10:a1:80:fb:29
Explanation
OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.
Topic 1 · Question 1289
What is a characteristic of a Layer 2 switch?
- Aresponsible for sending data in a particular sequence
- Bmaintains stateful transaction information
- Cmakes forwarding decisions based on MAC addresses (correct answer)
- Dfilters based on a transport layer protocol
Reveal answer & explanationHide answer
Correct answer: C
The correct answer is C. Option C: makes forwarding decisions based on MAC addresses
Explanation
OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.
Topic 1 · Question 1290

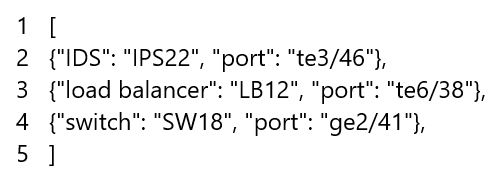

What is represented by the word "switch" within this JSON schema?
- Akey (correct answer)
- Bobject
- Carray
- Dvalue
Reveal answer & explanationHide answer
Correct answer: A
The correct answer is A. Option A: key
Showing questions 1101–1120 of 1182 · Page 56 of 60
