Page 58 of 60 · 1182 total questions.

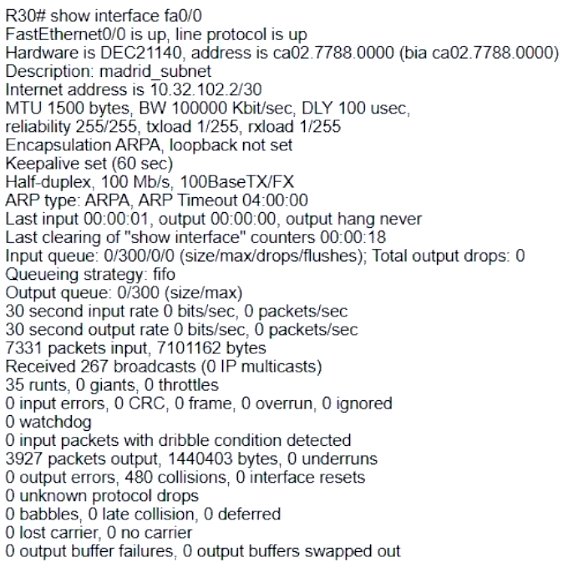

Which interface condition is occurring in this output?
The correct answer is A. Option A: duplex mismatch
Refer to the exhibit. Which set of commands must be applied to the two switches to configure an LACP Layer 2 EtherChannel?
The correct answer is D. Option D: SW1(config)#interface range f0/13 -14SW1(config-if-range)#channel-group 1 mode activeSW2(config)#interface range f0/13 -14SW2(config--range)#channel-group 1 mode passive
How is noise defined in Wi-Fi?
The correct answer is B. Option B: any interference that is not Wi-Fi traffic that degrades the desired signal

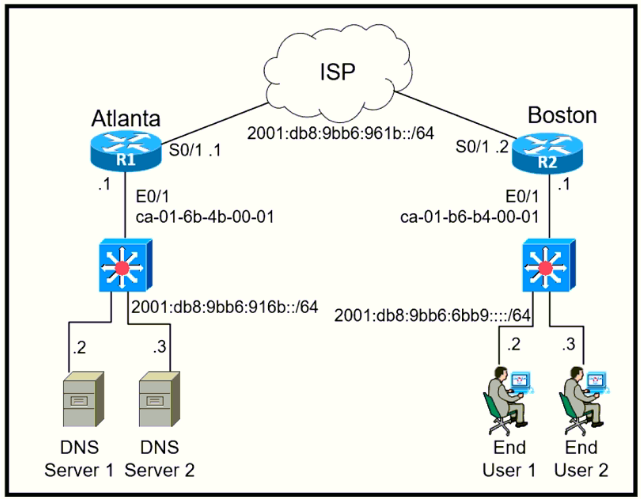

Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
The correct answer is D. Option D: 2001:db8:8bb8:8bb1:C801:B8FF:FEB8:1
What is a characteristics of frame switching?
The correct answer is A. Option A: floods unknown destinations to all ports except the receiving port
Explanation
NAT translates addresses between network domains, commonly conserving public IPv4 addresses.
What are two reasons to implement DHCP in a network? (Choose two.)
The correct answer is B, C. Option B: control the length of time an IP address is used by a network device Option C: reduce administration time in managing IP address ranges for clients
Explanation
OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.
Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
The correct answer is A. Option A: 2001:db8:9bb6:6bb9:C801:B6FF:FEB4:1
Refer to the exhibit. What is the metric for the route to the 192.168.10.33 host?
The correct answer is D. Option D: 193
Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
The correct answer is C. Option C: 2001:db8:8bb3:8bb1:C801:B8FF:FEB3:1
Refer to the exhibit. A secondary route is required on router R1 to pass traffic to the LAN network on R2 if the primary link fails. Which command must be entered to configure the router?
The correct answer is D. Option D: ip route 10.0.2.0 255.255.255.248 10.0.0.6 91
Refer to the exhibit. The LACP EtherChannel is configured, and the last change is to modify the interfaces on SwitchA to respond to packets received, but not to initiate negotiation. The interface range gigabitethernet0/0/0-15 command is entered. What must be configured next?
The correct answer is D. Option D: SwitchA(config-if-range)#channel-group 1 mode passive
Refer to the exhibit. Network services must be enabled on interface Gi1/0/34. Which configuration meets the needs for this implementation?
The correct answer is C. Option C: interface Gi1/0/34switchport mode accessswitchportaccess vlan 400switchport voice vlan 4041
Explanation
A VLAN creates a separate Layer 2 broadcast domain on switched infrastructure.
Refer to the exhibit. How will the device handle a packet destined to IP address 100.100.100.100?
The correct answer is D. Option D: It will choose the route with the longest match,O 100.100.100.100/32 [110/21] via 192.168.1.1, 00:05:57, Ethernet0/1.
Which two statements distinguish authentication from accounting? (Choose two.)
The correct answer is B, C. Option B: Only authentication challenges users for their credentials and returns a response. Option C: Only authentication validates "who you are."
Refer to the exhibit. Which switch in this configuration will be elected as the root bridge? SW1: 0C:E4:82:33:62:23 - SW2: 0C:0E:16:11:05:97 - SW3: 0C:E0:16:1A:3C:9D - SW4: 0C:00:18:A1:B3:19
The correct answer is B. Option B: SW2
Refer to the exhibit. Which switch in this configuration will be elected as the root bridge?
The correct answer is D. Option D: SW4: 0C:0A:05:22:05:97
Refer to the exhibit. All routers in the network are configured correctly, and the expected routes are being exchanged among the routers. Which set of routes are learned from neighbors and installed on router 2?
The correct answer is A. Option A: 10.129.9.0/2310.139.2.0/3010.2.191.0/3010.129.9.0/25
Refer to the exhibit. Router-WAN1 has a new connection via Gi0/0 to the ISP. Users running the web applications indicate that connectivity is unstable to the internet. What is causing the interface issue?
The correct answer is B. Option B: Frames are discarded due to a half-duplex negotiation.
A network engineer is configuring a new router at a branch office. The router is connected to an upstream WAN network that allows the branch to communicate with the head office. The central time server with IP address 172.24.54.8 is located behind a firewall at the head office. Which command must the engineer configure so that the software clock of the new router synchronizes with the time server?
The correct answer is A. Option A: ntp server 172.24.54.8
Explanation
NTP synchronizes device clocks so logs, certificates, and operations share consistent time.
Refer to the exhibit. Which type of JSON data is represented?
The correct answer is B. Option B: array
Showing questions 1141–1160 of 1182 · Page 58 of 60
