200-301 — questions

Page 8 of 60 · 1182 total questions.

200-301 Question 166

Single page →

Topic 1 · Question 166

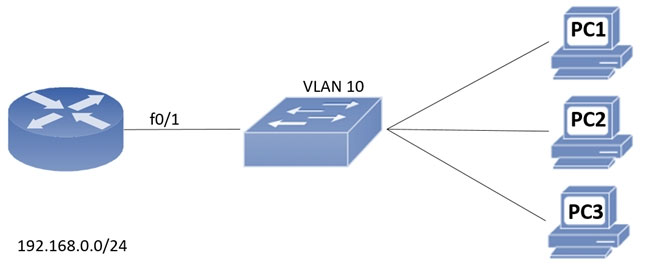

Refer to the exhibit. An engineer assigns IP addressing to the current VLAN with three PCs. The configuration must also account for the expansion of 30 additional VLANS using the same Class C subnet for subnetting and host count. Which command set fulfills the request while reserving address space for the expected growth?

ASwitch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 265 255.255.252
BSwitch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255 255.255.248 (correct answer)
CSwitch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255 255.255.0
DSwitch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.128

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255 255.255.248

Explanation

A VLAN creates a separate Layer 2 broadcast domain on switched infrastructure. OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.

200-301 Question 167

Single page →

Topic 1 · Question 167

A client experiences slow throughput from a server that is directly connected to the core switch in a data center. A network engineer finds minimal latency on connections to the server, but data transfers are unreliable, and the output of the show interfaces counters errors command shows a high FCS-Err count on the interface that is connected to the server. What is the cause of the throughput issue?

Aa physical cable fault (correct answer)
Ba speed mismatch
Chigh bandwidth usage
Da cable that is too long

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: a physical cable fault

200-301 Question 168

Single page →

Topic 1 · Question 168

What is the difference between 1000BASE-LX/LH and 1000BASE-ZX interfaces?

A1000BASE-LX/LH interoperates with multimode and single-mode fiber, and 1000BASE-ZX needs a conditioning patch cable with multimode.
B1000BASE-ZX interoperates with dual-rate 100M/1G 10Km SFP over multimode fiber, and 1000BASE-LX/LH supports only single-rate
C1000BASE-ZX is supported on links up to 1000km, and 1000BASE-LX/LH operates over links up to 70 km
D1000BASE- LX/LH is supported on links up to 10km, and 1000Base-ZX operates over links up to 70 km (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: 1000BASE- LX/LH is supported on links up to 10km, and 1000Base-ZX operates over links up to 70 km

200-301 Question 169

Single page →

Topic 1 · Question 169 · Select all that apply

What are two reasons to implement IPv4 private addressing on a network? (Choose two.)

ATo enable internal applications to treat the private IPv4 addresses as unique (correct answer)
BTo facilitate renumbering when merging networks
CTo expand the routing table on the router
DTo provide protection from external denial-of-service attacks
ETo conserve global unique IPv4 addresses (correct answer)

Reveal answer & explanation

Correct answer: A, E

The correct answer is A, E. Option A: To enable internal applications to treat the private IPv4 addresses as unique Option E: To conserve global unique IPv4 addresses

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. This option keeps traffic private / properly secured as required.

200-301 Question 170

Single page →

Topic 1 · Question 170

Which concern is addressed with the use of private IPv4 addressing?

ALack of routing protocol support for CIDR and VLSM
BLack of security protocols at the network perimeter
CLack of available TCP/UDP ports per IPv5 address
DLack of available publicly routable unique IPv4 address (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: Lack of available publicly routable unique IPv4 address

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. This option keeps traffic private / properly secured as required.

200-301 Question 171

Single page →

Topic 1 · Question 171

What is the path for traffic sent from one user workstation to another workstation on a separate switch in a three-tier architecture model?

Aaccess "" core "" access
Baccess "" distribution "" distribution "" access
Caccess "" core "" distribution "" access
Daccess "" distribution "" core "" distribution "" access (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: access "" distribution "" core "" distribution "" access

200-301 Question 172

Single page →

Topic 1 · Question 172

What is the difference between IPv6 unicast and anycast addressing?

AAn individual IPv6 unicast address is supported on a single interface on one node, but an IPv6 anycast address is assigned to a group of interfaces on multiple nodes. (correct answer)
BIPv6 anycast nodes must be explicitly configured to recognize the anycast address, but IPv6 unicast nodes require no special configuration.
CIPv6 unicast nodes must be explicitly configured to recognize the unicast address, but IPv6 anycast nodes require no special configuration.
DUnlike an IPv6 anycast address, an IPv6 unicast address is assigned to a group of interfaces on multiple nodes.

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: An individual IPv6 unicast address is supported on a single interface on one node, but an IPv6 anycast address is assigned to a group of interfaces on multiple nodes.

Explanation

OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead. IPv6 uses 128-bit addresses and relies on Neighbor Discovery rather than ARP.

200-301 Question 173

Single page →

Topic 1 · Question 173

Refer to the exhibit. Between which zones do wireless users expect to experience intermittent connectivity?

Abetween zones 1 and 2
Bbetween zones 2 and 5
Cbetween zones 3 and 4 (correct answer)
Dbetween zones 3 and 6

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: between zones 3 and 4

200-301 Question 174

Single page →

Topic 1 · Question 174

Which WAN topology provides a combination of simplicity quality, and availability?

Apartial mesh (correct answer)
Bfull mesh
Cpoint-to-point
Dhub-and-spoke

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: partial mesh

200-301 Question 177

Single page →

Topic 1 · Question 177

How are the switches in a spine-and-leaf topology interconnected?

AEach leaf switch is connected to one of the spine switches
BEach leaf switch is connected to each spine switch. (correct answer)
CEach leaf switch is connected to two spine switches, making a loop.
DEach leaf switch is connected to a central leaf switch, then uplinked to a core spine switch.

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: Each leaf switch is connected to each spine switch.

200-301 Question 178

Single page →

Topic 1 · Question 178

What is the primary effect of the spanning-tree portfast command?

AIt immediately enables the port in the listening state.
BIt immediately puts the port into the forwarding state when the switch is reloaded.
CIt enables BPDU messages.
DIt minimizes spanning-tree convergence time. (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: It minimizes spanning-tree convergence time.

200-301 Question 179

Single page →

Topic 1 · Question 179

What occurs when PortFast is enabled on an interface that is connected to another switch?

ARoot port choice and spanning-tree recalculation are accelerated when a switch link goes down.
BAfter spanning-tree converges, PortFast shuts down any port that receives BPDUs.
CVTP is allowed to propagate VLAN configuration information from switch to switch automatically.
DSpanning-tree fails to detect a switching loop increasing the likelihood of broadcast storms. (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: Spanning-tree fails to detect a switching loop increasing the likelihood of broadcast storms.

200-301 Question 180

Single page →

Topic 1 · Question 180

Which QoS Profile is selected in the GUI when configuring a voice over WLAN deployment?

APlatinum (correct answer)
BBronze
CGold
DSilver

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: Platinum

200-301 Question 181

Single page →

Topic 1 · Question 181

Refer to the exhibit. Which switch in this configuration will be elected as the root bridge? SW1: 0C:E0:38:41:86:07 - SW2: 0C:0E:15:22:05:97 - SW3: 0C:0E:15:1A:3C:9D - SW4: 0C:E0:18:A1:B3:19 -

ASW1
BSW2
CSW3 (correct answer)
DSW4

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: SW3

200-301 Question 183

Single page →

Topic 1 · Question 183

An engineer needs to configure LLDP to send the port description type length value (TLV). Which command sequence must be implemented?

Aswitch(config-if)#lldp port-description (correct answer)
Bswitch#lldp port-description
Cswitch(config-line)#lldp port-description
Dswitch(config)#lldp port-description

Reveal answer & explanation

Correct answer: A

The correct answer is A. Option A: switch(config-if)#lldp port-description

Explanation

LLDP is the vendor-neutral IEEE neighbor discovery protocol.

200-301 Question 184

Single page →

Topic 1 · Question 184

Refer to the exhibit. Which switch becomes the root bridge?

AS1
BS2 (correct answer)
CS3
DS4

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: S2

200-301 Question 185

Single page →

Topic 1 · Question 185

Which configuration ensures that the switch is always the root for VLAN 750?

ASwitch(config)#spanning-tree vlan 750 priority 38418607
BSwitch(config)#spanning-tree vlan 750 priority 0 (correct answer)
CSwitch(config)#spanning-tree vlan 750 root primary
DSwitch(config)#spanning-tree vlan 750 priority 614440

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: Switch(config)#spanning-tree vlan 750 priority 0

Explanation

A VLAN creates a separate Layer 2 broadcast domain on switched infrastructure.

200-301 Question 186

Single page →

Topic 1 · Question 186

Refer to the exhibit. After the switch configuration, the ping test fails between PC A and PC B. Based on the output for switch 1, which error must be corrected?

AThe PCs are in the incorrect VLAN.
BAll VLANs are not enabled on the trunk.
CAccess mode is configured on the switch ports.
DThere is a native VLAN mismatch. (correct answer)

Reveal answer & explanation

Correct answer: D

The correct answer is D. Option D: There is a native VLAN mismatch.

Explanation

Frames in the native VLAN are untagged by default on an 802.1Q trunk. A VLAN creates a separate Layer 2 broadcast domain on switched infrastructure. NAT translates addresses between network domains, commonly conserving public IPv4 addresses.

200-301 Question 188

Single page →

Topic 1 · Question 188

Which unified access point mode continues to serve wireless clients after losing connectivity to the Cisco Wireless LAN Controller?

Alocal
Bmesh
Cflexconnect (correct answer)
Dsniffer

Reveal answer & explanation

Correct answer: C

The correct answer is C. Option C: flexconnect

200-301 Question 189

Single page →

Topic 1 · Question 189

Refer to the exhibit. Which command provides this output?

Ashow ip route
Bshow cdp neighbor (correct answer)
Cshow ip interface
Dshow interface

Reveal answer & explanation

Correct answer: B

The correct answer is B. Option B: show cdp neighbor

Explanation

CDP is Cisco's proprietary Layer 2 neighbor discovery protocol.

Showing questions 141–160 of 1182 · Page 8 of 60
