Page 52 of 60 · 1182 total questions.

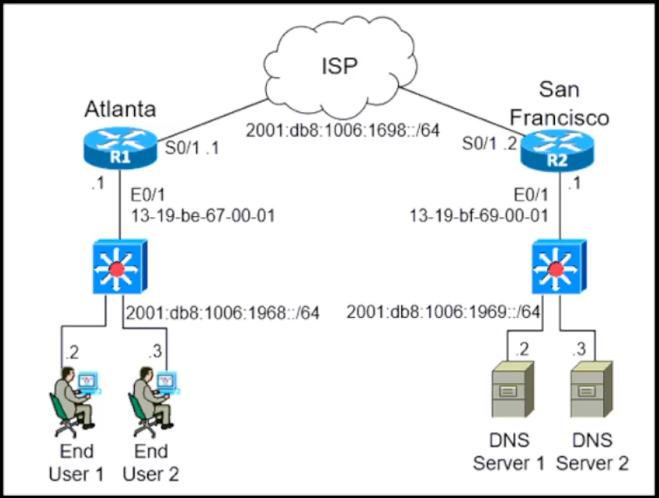

Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which Ipv6 address Is produced by the router?
The correct answer is B. Option B: 2001:db8:1006:1968:1119:BEFF:FE67:1
Refer to the exhibit. Users at a branch office are experiencing application performance issues, poor VoIP audio quality, and slow downloads. What is the cause of the issues?
The correct answer is B. Option B: interface configuration
An engineer needs to configure an access point to forward all client traffic through a wireless controller. Which mode must be enabled to accomplish this task?
The correct answer is A. Option A: local
An Ethernet frame arrived at switch interface G0/1, but the destination MAC address is missing from the MAC address table. How does the switch process the frame?
The correct answer is D. Option D: It floods the frame out of the remaining switch interfaces.
In which circumstance would a network architect decide to implement a global unicast subnet instead of a unique local unicast subnet?
The correct answer is D. Option D: when the subnet must be routable over the internet
Which interface is used to send traffic to the destination network?
The correct answer is D. Option D: G0/16
Refer to the exhibit. Which switch becomes the root bridge?
The correct answer is D. Option D: SW 2 -Bridge Priority - 36864 -mac-address 04:1e:c4:bf:02:55
Explanation
OSPF elects a designated router on multiaccess networks to reduce adjacency and LSA exchange overhead.
Which interface condition is occurring in this output?
The correct answer is B. Option B: high throughput
What are two functions of DHCP servers? (Choose two.)
The correct answer is C, D. Option C: support centralized IP management Option D: assign dynamic IP configurations to hosts in a network
What is the operating mode and role of a backup port on a shared LAN segment in Rapid PVST+?
The correct answer is B. Option B: blocking mode and provides an alternate path toward the designated bridge
Explanation
NAT translates addresses between network domains, commonly conserving public IPv4 addresses. PAT distinguishes many inside sessions on one public address by translating transport-layer ports.
A network architect is deciding whether to implement Cisco autonomous access points or lightweight access points. Which fact about firmware updates must the architect consider?
The correct answer is B. Option B: Unlike autonomous access points, lightweight access points require a WLC to implement remote firmware updates.
What is the role of SNMP in the network?
The correct answer is A. Option A: to monitor and manage network devices using a UDP underlay that operates on the application layer
Refer to the exhibit. What is the issue with the interface GigabitEthernet0/0/1?
The correct answer is D. Option D: duplex mismatch
Refer to the exhibit. Router R1 receives static routing updates from routers A, B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1. Which summary address must be advertised in OSPF?
The correct answer is D. Option D: 10.1.40.0/23
An on-site service desk technician must verify the IP address and DNS server information on a user’s Windows computer. Which command must the technician enter at the command prompt on the user’s computer?
The correct answer is B. Option B: ipconfig /all
Which type of IPv4 address must be assigned to a server to protect it from external access and allow only internal users access while restricting internet access?
The correct answer is A. Option A: private
What differentiates the Cisco OfficeExtend AP mode from the Cisco FlexConnect AP mode?
The correct answer is A. Option A: FlexConnect allows a personal SSID to be configured on the AP, and personal SSIDs are not supported with OfficeExtend.
Refer to the exhibit. A network engineer is configuring a WLAN to connect with the 172.16.10.0/24 network on VLAN 20. The engineer wants to limit the number of devices that connect to the WLAN on the USERWL SSID to 125. Which configuration must the engineer perform on the WLC?
The correct answer is B. Option B: In the WLAN configuration, set the Maximum Allowed Clients value to 125.
Refer to the exhibit. An LACP EtherChannel between two directly connected switches is in the configuration process. Which command must be configured on switch SW2s Gi0/1-2 interfaces to establish the channel to SW1?
The correct answer is C. Option C: channel-group 1 mode active

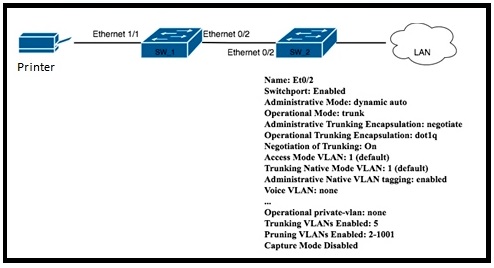

Refer to the exhibit. An administrator must connect SW_1 and the printer to the network. SW_2 requires DTP to be used for the connection to SW_1. The printer is configured as an access port with VLAN 5. Which set of commands completes the connectivity?
The correct answer is C. Option C: switchport mode dynamic desirableswitchport trunk allowed vlan add 5
Explanation
A trunk carries traffic for multiple VLANs between network devices. A VLAN creates a separate Layer 2 broadcast domain on switched infrastructure.
Showing questions 1021–1040 of 1182 · Page 52 of 60
